Sokokubwa Kenya

Must 80A 12V/24V/36V/48V Auto MPPT Charge Controller - Sokokubwa

Must 80A 12V/24V/36V/48V Auto MPPT Charge Controller. Sales, servicing and spare parts support in Kenya.

  • โœ“Nominal Battery System Voltage: 12 / 24 / 36 / 48VDC (Auto detection)
  • โœ“Maximum Solar Input Voltage
  • โœ“PV Array MPPT Voltage Range
24 Months WarrantySpare Parts AvailableSales & Servicing
Call/WhatsApp +254 10 5929344 ยท Empire Arcade, First Floor, Kiambu
KESย 31,000.00
Solar Charge Controllers โ€บ MPPT Solar Charge Control

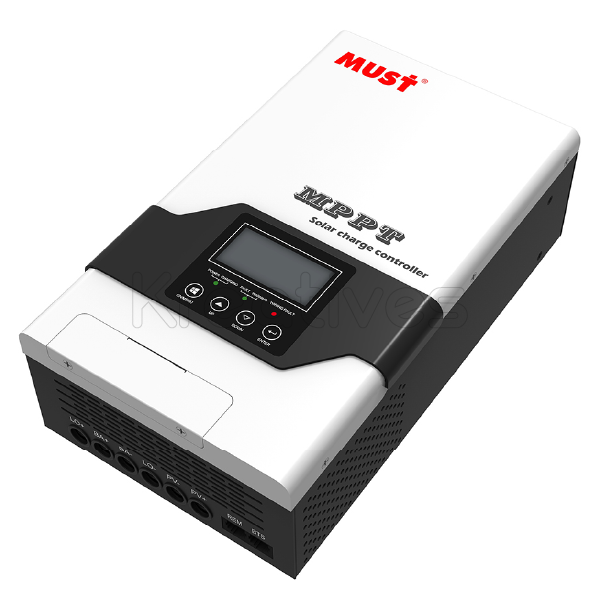

Must 80A 12V/24V/36V/48V Auto MPPT Charge Controller

The Must 80A 12V/24V/36V/48V Auto MPPT Charge Controller is engineered for durability and efficiency in Kenyan conditions. Built with high-quality materials and precision manufacturing, this product delivers excellent value for Kenyan homes, farms, and businesses. Backed by our comprehensive warranty and after-sales support.

24 Months Warranty
SalesServicingSpare Parts AvailableCountrywide Delivery

Key Features

โœ“LCD display , easy to operate on LCD screen
โœ“Multi stage charging (3-stage charging , parallel charging and equalized charging function)
โœ“BTS โ€“ Battery remote temperature sensor terminal
โœ“Enable to charge Li-thium, Gel , lead-acid battery
โœ“With RS485 & USB communication port

Specifications

MODEL
PC18-6015F
Nominal Battery System Voltage
12 / 24 / 36 / 48VDC (Auto detection)
Maximum Solar Input Voltage
200VDC@12VDC 245VDC@24VDC 245VDC@36VDC 245VDC@48VDC
PV Array MPPT Voltage Range
15VDC~200VDC@12VDC 30VDC~200VDC@24VDC 45VDC~200VDC@36VDC 60VDC~200VDC@48VDC
Maximum Input Power
12 Volt-940W 24 Volt-1880W 36 Volt-2820W 48 Volt-3760W
Absorption Stage
FLD:14.2/28.4/42.6/56.8 AGM/GEL/LEAD:14.4/28.8/43.2/57.6
Float Stage
FLD:13.7/27.4/41.1/54.8 AGM/GEL/LEAD::13.7/27.4/41.1/54.8
Over-charging Voltage
15.5V / 30.0V / 45.0V / 60.0V
Over-charging Comeback Voltage
14.5V / 29.5V / 44.5V / 59.0V
Battery Defect Voltage
10.0V / 17.0V / 25.5V / 34.0V
Temperature Compensation Conefficient
-5mv / โ„ƒ /cell (25โ„ƒ vef)
Peak Conversion Efficiency
98% (MPPT Efficiency 99%)
Mximum Battery Current
60Amps
Max Charging Current
60amps continuous @ 40โ„ƒ ambient
Radiating Mode
Fan cooling

Service, Spare Parts & Warranty

๐Ÿ›ก๏ธ
Warranty Backed
Supported by our East Africa warranty. Terms are shown under the product title.
๐Ÿ”ง
Servicing & Repairs
Professional servicing and repair by our technical team.
โš™๏ธ
Genuine Spare Parts
Spare parts available, so your machine keeps working.
๐Ÿšš
Countrywide Delivery
Delivery across Kenya. Pay by M-Pesa, bank transfer or cash on delivery.

Explore More

Frequently Asked Questions โ€” Solar Panels

Sizing, cloudy-day performance, connections and warranty.

What size solar panel do I need?

Start from your daily energy use in kWh. In Kenya a panel produces roughly its rated watts x 5 peak sun hours x 0.8 per day โ€” so a 200W panel gives ~0.8 kWh/day and a 400W panel ~1.6 kWh/day. Divide your daily kWh by that figure, then add 20% for cable and inverter losses.

Will it work on cloudy days?

Yes, at reduced output. Heavy cloud can cut output to a small fraction of the rating; light cloud cuts it far less. Size the array and battery bank with 30-40% margin if you need dependable power through cloudy spells.

Monocrystalline or polycrystalline โ€” which is better?

Monocrystalline panels are more efficient (18-23%) and use limited roof space better. Polycrystalline is slightly less efficient and cheaper. Check the cell type in the specifications above.

What do I need besides the panel?

For a battery system you need: a charge controller (MPPT preferred), a battery, and for AC appliances an inverter. Solar cable and DC breakers complete the set.

Warranty, spare parts, service and delivery?

24-month warranty. Spare parts in stock. Service and Warranty Centre:
Call/WhatsApp: +254 105 929 344
Email: info@sokokubwa.com
Visit: Empire Arcade, First Floor, Kiambu
Nationwide delivery across Kenya.
