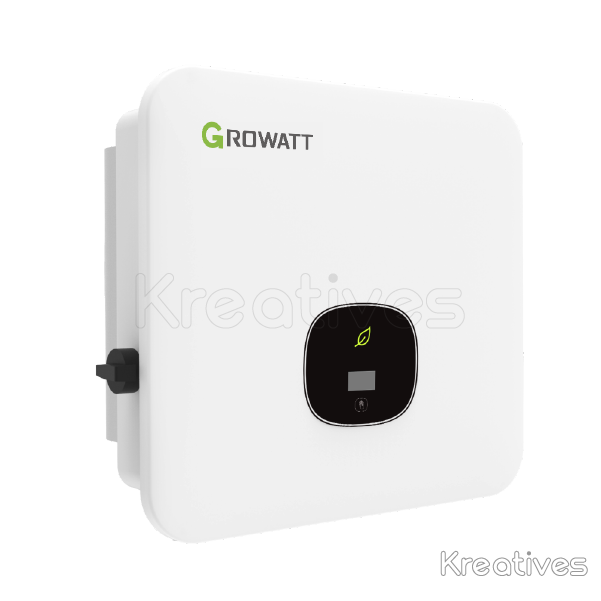

Growatt 10kW Three Phase Grid Tie Solar Inverter

The Growatt 10kW Three Phase Grid Tie Solar Inverter is a complete solar solution that harnesses Kenya's abundant sunshine to provide clean, reliable power for your home or business. Reduce your electricity bills and enjoy uninterrupted power supply with this high-quality solar system.

24 Months Warranty
SalesServicingSpare Parts AvailableCountrywide Delivery

Key Features

βœ“Max. efficiency 98.6%
βœ“OLED and Touch button
βœ“Type II SPD on DC and AC side
βœ“String Monitoring
βœ“AFCI optional

Specifications

Model
MOD 10KTL3-X | MOD 11KTL3-X | MOD 12KTL3-X | MOD 13KTL3-X | MOD 15KTL3-X
Max. recommended PV power
15000W | 16500W | 18000W | 19500W | 22500W
Max. DC voltage
1100V
Start Voltage
200V
Nominal voltage
580V
No. of MPP trackers
2
AC nominal power
10000W | 11000W | 12000W | 13000W | 15000W
Nominal AC voltage
220V/380V, 230V/400V (340-440V) | 50/60 Hz (45-55Hz/55-65 Hz)
Max. output current
16.7A | 18.3A | 20A | 21.7A | 25A
MAX. efficient
98.6%
AC/DC surge protection
Type II / Type II
Weight
14kg | 14kg | 16kg | 16kg | 16kg
Dimensions
425/387/178mm
Interfaces
USB/RS485/WIFI /GPRS//LAN/RF: yes/yes/Optional/Optional/Optional/Optional
Warranty
5 / 10 years: Yes/Optional

Service, Spare Parts & Warranty

πŸ›‘οΈ
Warranty Backed
Supported by our East Africa warranty. Terms are shown under the product title.
πŸ”§
Servicing & Repairs
Professional servicing and repair by our technical team.
βš™οΈ
Genuine Spare Parts
Spare parts available, so your machine keeps working.
🚚
Countrywide Delivery
Delivery across Kenya. Pay by M-Pesa, bank transfer or cash on delivery.

Explore More

Frequently Asked Questions β€” Solar Panels

Sizing, cloudy-day performance, connections and warranty.

What size solar panel do I need?

Start from your daily energy use in kWh. In Kenya a panel produces roughly its rated watts x 5 peak sun hours x 0.8 per day β€” so a 200W panel gives ~0.8 kWh/day and a 400W panel ~1.6 kWh/day. Divide your daily kWh by that figure, then add 20% for cable and inverter losses.

Will it work on cloudy days?

Yes, at reduced output. Heavy cloud can cut output to a small fraction of the rating; light cloud cuts it far less. Size the array and battery bank with 30-40% margin if you need dependable power through cloudy spells.

Monocrystalline or polycrystalline β€” which is better?

Monocrystalline panels are more efficient (18-23%) and use limited roof space better. Polycrystalline is slightly less efficient and cheaper. Check the cell type in the specifications above.

What do I need besides the panel?

For a battery system you need: a charge controller (MPPT preferred), a battery, and for AC appliances an inverter. Solar cable and DC breakers complete the set.

Warranty, spare parts, service and delivery?

24-month warranty. Spare parts in stock. Service and Warranty Centre:
Call/WhatsApp: +254 105 929 344
Email: info@sokokubwa.com
Visit: Empire Arcade, First Floor, Kiambu
Nationwide delivery across Kenya.
