Solar Charge Controllers › MPPT Solar Charge Control

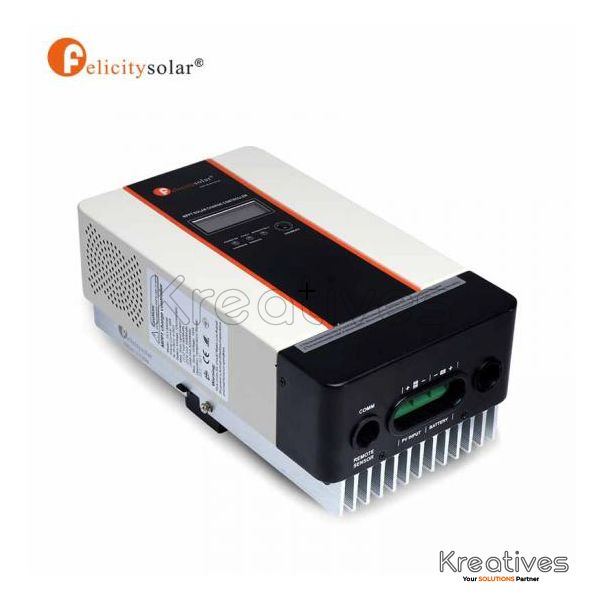

Felicity 100A 12V/24/48V MPPT Charge Controller
The Felicity 100A 12V/24/48V MPPT Charge Controller is engineered for durability and efficiency in Kenyan conditions. Built with high-quality materials and precision manufacturing, this product delivers excellent value for Kenyan homes, farms, and businesses. Backed by our comprehensive warranty and after-sales support.
24 Months Warranty
SalesServicingSpare Parts AvailableCountrywide Delivery
Key Features
✓Automatic battery voltage detection
✓Support wide range of lead-acid batteries including wet, AGM and gel batteries
✓Integrated intelligent slot compatible with SNMP/MODBUS communication
Specifications
Model
FL-SCCM4524
Max PV Input Vol
145V
System Vol
12V/24V/48/(Auto dection)
Max battery Charge Current
45A
PV Array MPPT Vol Range
15V-130VDC/ 30-130VDC/ 60-130V
Max PV Input Power(12V)
625W
Max PV Input Power(24V)
1250W
Max PV Input Power(48V)
2500W
Charging Curve
See image below this sheet
Charge Algorithm
3-Step
Charging Stages
Bulk,Absorpotion,FloatBulk,Absorption,Float
Temperature Compensation Coefficient
-5mV/℃/Cell/(25℃ref)
Temperature Compensation Range
0℃ to 50℃
Temperature Compensation Set Points
Absoption, Float Absoption, Float
Charging Set Points
Absoption Stage, Float Stage
Service, Spare Parts & Warranty
🛡️
Warranty Backed
Supported by our East Africa warranty. Terms are shown under the product title.
🔧
Servicing & Repairs
Professional servicing and repair by our technical team.
⚙️
Genuine Spare Parts
Spare parts available, so your machine keeps working.
🚚
Countrywide Delivery
Delivery across Kenya. Pay by M-Pesa, bank transfer or cash on delivery.
Explore More
More MPPT Solar Charge ControlAll Solar Charge ControllersFelicity Solar Kenya productsFelicity Solar KenyaSolar Power
Frequently Asked Questions
What are the main specifications of the Felicity 100A 12V/24/48V MPPT Charge Controller?
Key details: Model: FL-SCCM4524; Max PV Input Vol: 145V; System Vol: 12V/24V/48/(Auto dection); Max battery Charge Current: 45A; PV Array MPPT Vol Range: 15V-130VDC/ 30-130VDC/ 60-130V. See the Key Features and Specifications sections above for the full list.
What size inverter do I need?
Add up the running watts of everything you will use at the same time, then add about 30% headroom. Motors such as fridges and pumps draw two to three times their running power at start-up, so size for that surge. A typical home backup set-up is 2–5kVA.
Does an inverter work without batteries?
Off-grid inverters need a battery bank. Some hybrid and grid-tie models can run from solar or the grid without batteries but will stop when that source is lost. Check the operating modes in the specifications above.
MPPT or PWM charge controller?
MPPT controllers extract more energy from the panels, especially with higher-voltage arrays and in heat, and are the better choice for larger systems. PWM controllers cost less and suit small 12V systems.
Can an inverter run a fridge and a water pump together?
Yes, if its surge rating covers both start-ups. Add each appliance's surge together, and use a pure sine wave inverter for motors and fridges. Tell us your appliances and we will size it.
What do the error codes on my inverter mean?
Codes differ between brands and models, so use the manual for the exact meaning. The usual causes are low battery voltage, overload, over-temperature, reversed PV or AC polarity and communication faults with the battery. Send us your model and the code on WhatsApp and our technical team will help.
Do you deliver countrywide?
Yes. Sokokubwa delivers across Kenya. Call or WhatsApp +254 10 5929344 with your location and we will confirm delivery details.
What payment methods do you accept?
You can pay by M-Pesa, bank transfer or cash on delivery. Contact us to confirm the option that suits your order.
What warranty and after-sales support does it have?
This product comes with a 24 months warranty. Sokokubwa also offers servicing and genuine spare parts, so you are supported after you buy.
